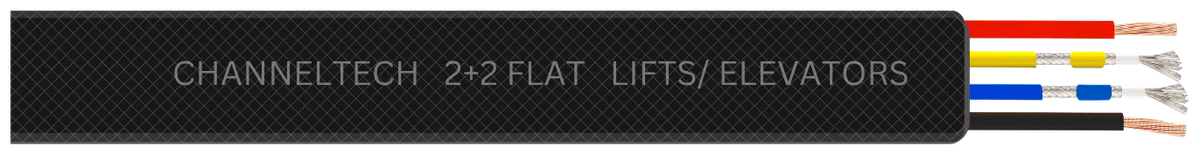

2+2 Flat HD camera lift cable
CC-9511K-90 · 90 m coil pairsTwo multi-strand tinned-copper video cores and two multi-strand copper power cores in a black, flexible FRLS PVC flat jacket. One pull for a DVR camera in the lift: video down, 12 V up.
| Cable type | 2 video + 2 power, flat |
| Video cores | Multi-strand tinned copper, LDPE insulated |
| Outer sheath | Special flexible FRLS PVC, black |
| Profile | Flat |
| Fire performance | FRLS (flame retardant, low smoke) |
| Packing | 90 m coil pairs |
CC-9511K-90 specification
Construction as per the Channeltech catalogue. The full technical datasheet for this part code is issued on request — ask on WhatsApp and we send it the same day.
Construction
| Cable type | 2 video + 2 power, flat |
| Video cores | Multi-strand tinned copper, LDPE insulated |
| Power cores | Multi-strand copper |
| Outer sheath | Special flexible FRLS PVC, black |
| Profile | Flat |
Mechanical & packing
| Fire performance | FRLS (flame retardant, low smoke) |
| Packing | 90 m coil pairs |
| Datasheet | Full TDS on request |
CC-9511K-90 — questions
What is CC-9511K-90?
CC-9511K-90 is the Channeltech 2+2 Flat lift cable: two multi-strand tinned-copper video cores with LDPE insulation and two multi-strand copper power cores, in a black flexible FRLS PVC flat jacket. It carries an HD or analog camera's video and its 12 V supply in one cable.
Which cameras does it suit?
HD-TVI, AHD, HD-CVI and older analog cameras — anything that plugs into a DVR with a BNC. For IP cameras that connect to an NVR, use the CAT6 Flat 4 Pair, CC-8251G-90.
Why two video cores?
One is normally enough for a single camera; the second gives you a spare, or a second camera in the car, without pulling another cable. Two power cores carry the 12 V DC to the camera.
Why tinned copper on the video cores?
Tinning protects the fine strands from oxidation over years of flexing and humidity in the shaft, which keeps the video path low-loss and the BNC joints reliable.
CC-9511K-90 — quantity and delivery
Tell us the number of lifts and the travel height; we confirm coil pairs, stock and delivery. No prices are published — the list tracks copper.
